Product Detail

Model No.: YK120-55

Production Capacity: 2000 Set/Sets per Week

Delivery Date: It depends on your order.

Brand Name: YK

Pressure: ≤1Mpa

Means of Transport: Ocean,Land,Air

Packing: Carton .

Standard or Nonstandard: Standard

Temperature: -20℃~180℃

Speed: ≤15m/Sec

1,Single seal
2,Loosely inserted seal face provides self-adjusting capability
3,In-house manufactured sliding parts

product name : Elastomer Bellow Mechanical Seal For Pumps

Specifications

1 Elastomer bellows mechanical seals
2 Pressure up to 1MPa
3 Temperature -20 ~ 180 degrees C
4 Velocity : Vg up to 15m/sec

Stationary ring:carbon/ceramic/sic
Rotary ring:carbon/sic/tc
Rubber:NBR/Viton/EPDMT

- Single face

- Unbalanced seal
- Elastomer bellows

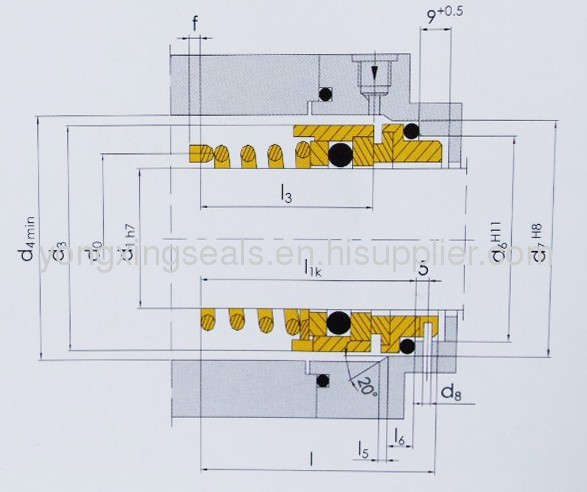

This is the design drawing:

More size informations , please contact us dorectly .

Spec/Size	d1	d0	d3	d4	d6	d7	d8	l	l1k	l3	l5	l6	f
YK120-18	18	21	32	34	27	33	3	43	36	26	2	5	3.5
YK120-20	20	23	34	36	29	35	3	43.5	36.5	26.5	2	5	3.5
YK120-25	25	28	39	41	34	40	3	47	40	29.5	2	5	3.5
YK120-28	28	31	42	44	37	43	3	47	40	28.5	2	5	3.5
YK120-30	30	33	44	46	39	45	3	50	43	31.5	2	5	3.5
YK120-35	35	36	49	51	44	50	3	53	46	34.5	2	5	3.5
YK120-40	40	44	57	60	51	58	4	57	50	37	2	6	3.5
YK120-45	45	50	62	65	56	63	4	61	54	41	2	6	3.5
YK120-50	50	55	69	70	62	70	4	62	55	41	2.5	6	3.5
YK120-55	55	60	74	75	67	75	4	64	57	43	2.5	6	3.5
YK120-60	60	65	79	85	72	80	4	65	58	44	2.5	6	4
YK120-65	65	71	84	90	77	85	4	67	60	46	2.5	6	4
YK120-70	70	76	91	95	83	92	4	70	63	46.5	2.5	7	4
YK120-75	75	80	97	104	88	97	4	72	65	48.5	2.5	7	5.5
YK120-80	80	87	104	109	95	105	4	72	65	48.5	3	7	5.5
