Ningbo Yinzhou Yongxing Mechanical Seals Factory
|
Catridge seals for machinery
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | Zhejiang, China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Applications:Miniwater pumps and minielectro pumps

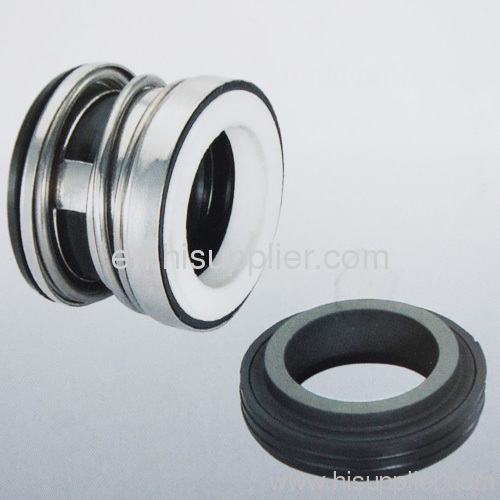

Product name :Catridge seals YK104
1.Main Characteristics
Temperature : -20°c~80°c
Pressure : ≤0.8Mpa
Speed : ≤5m/Sec
2.Materials
Stationary Ring : Ceramic / Carbon
Rotary Ring : Ceramic
Secondary Ring : NBR / VITON
Spring and Reainer : S.S / Copper
Mediums to be sealed:Water , oil and weakly-corrosive mediums , etc .
This is the design drawing:
Applications:Miniwater pumps and minielectro pumps
More size informations , please contact us directly .
| Spec/Size | d1 | d7 | l1 | l3 |
| YK104-9 | 9 | 22 | 20 | 5.5 |
| YK104-10 | 10 | 22 | 20 | 5.5 |
| YK104-11 | 11 | 24 | 20 | 5.5 |
| YK104-12 | 12 | 24 | 20 | 5.5 |
| YK104-14 | 14 | 26 | 25 | 7 |
| YK104-15 | 15 | 28 | 25 | 7 |
| YK104-16 | 16 | 28 | 25 | 7 |
| YK104-17 | 17 | 34 | 25 | 7 |
| YK104-18 | 18 | 34 | 25 | 7 |
| YK104-19 | 19 | 36 | 25 | 7 |
| YK104-20 | 20 | 36 | 25 | 7 |
| YK104-22 | 22 | 38 | 25 | 7 |
| YK104-25 | 25 | 41 | 37 | 9 |
| YK104-30 | 30 | 46 | 37 | 9 |
| YK104-35 | 35 | 51 | 37 | 9 |
| YK104-40 | 40 | 60 | 40 | 10.5 |
| YK104-45 | 45 | 65 | 40 | 10.5 |
